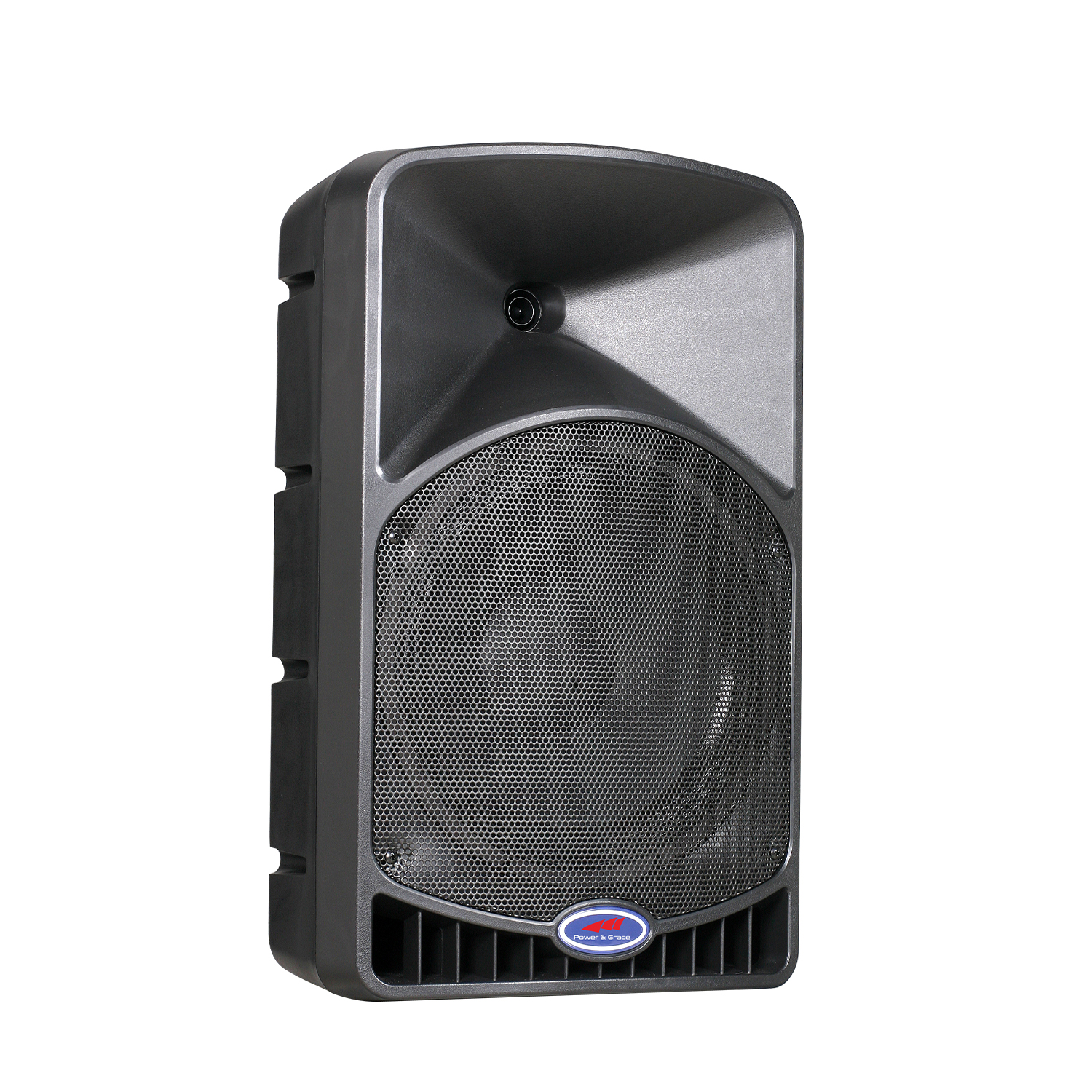

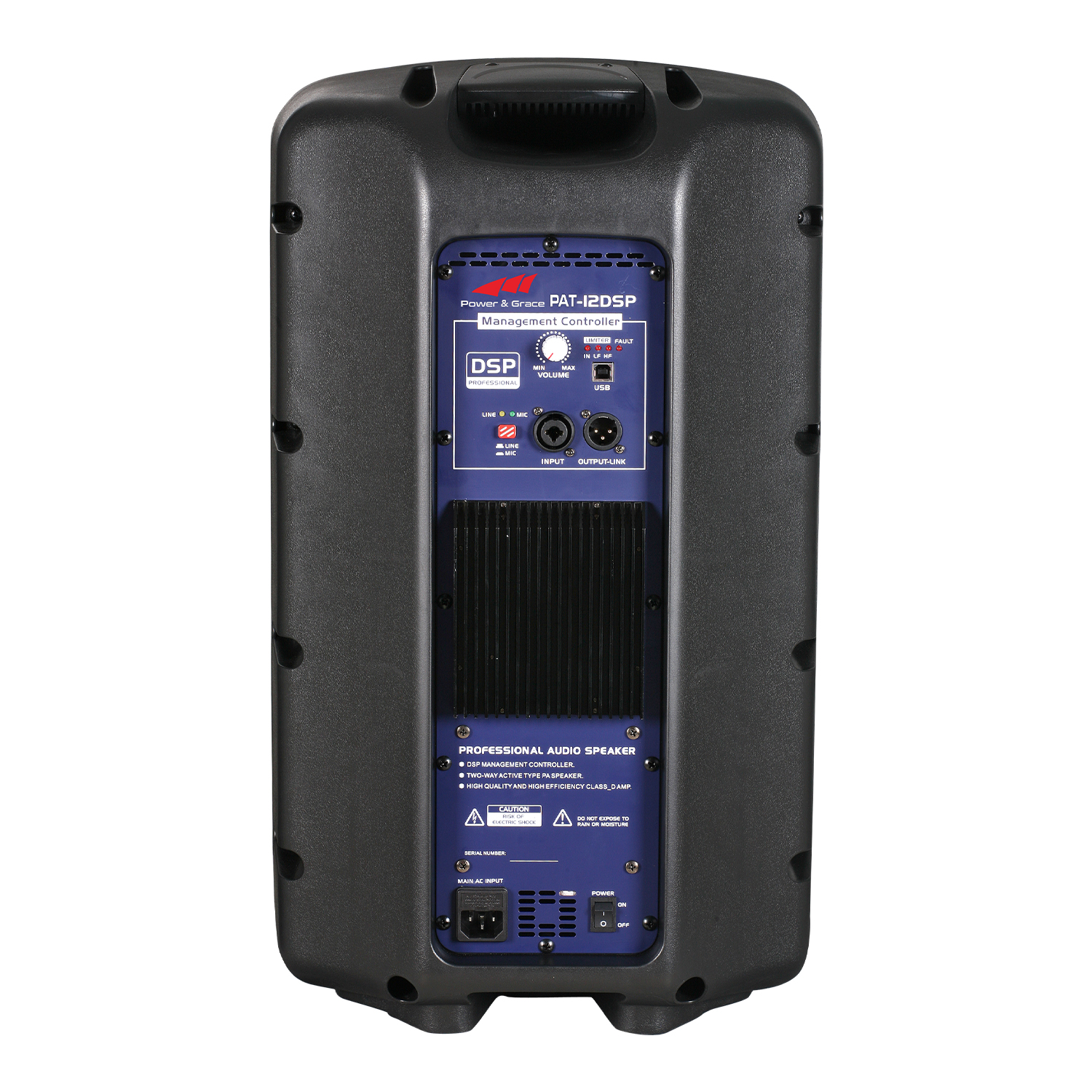

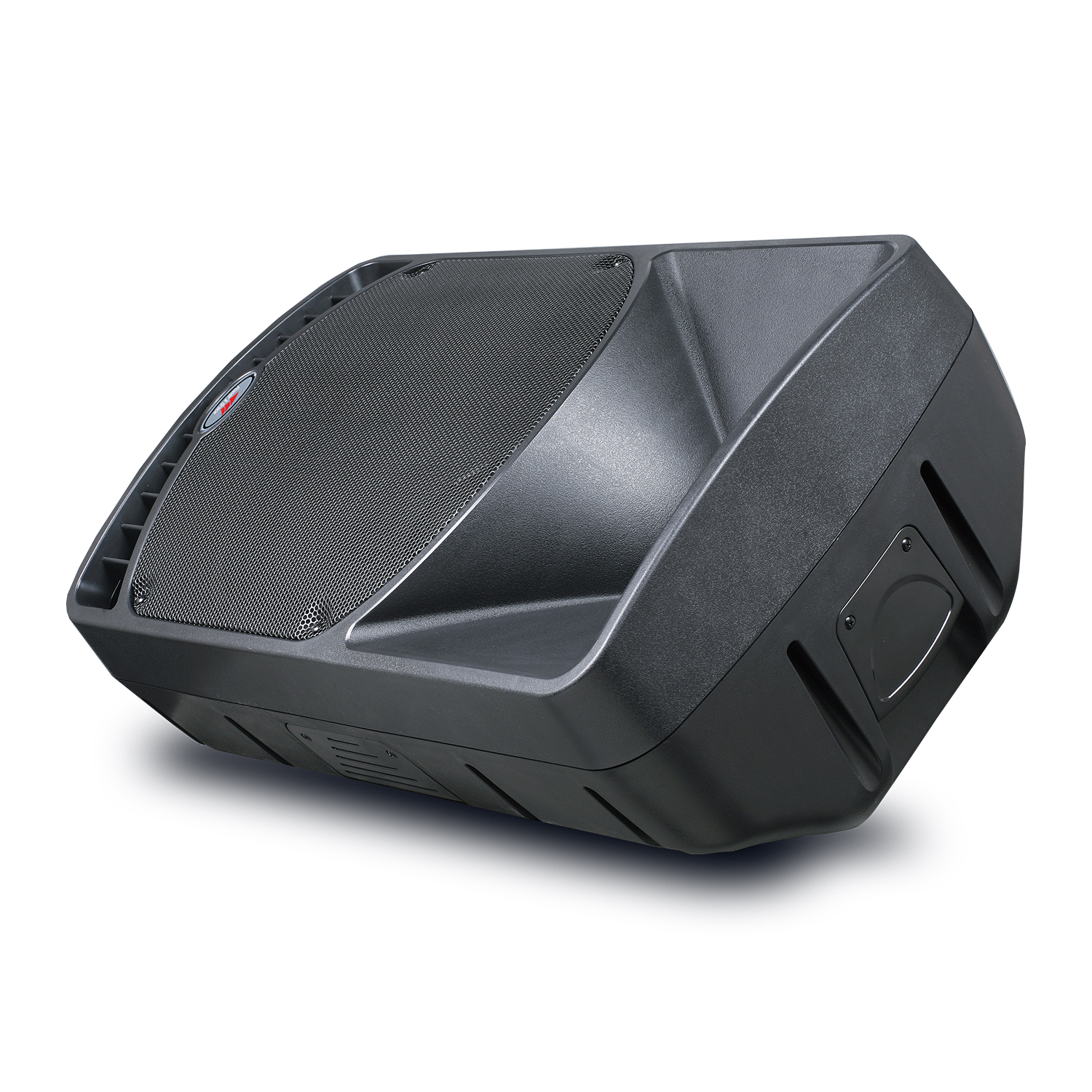

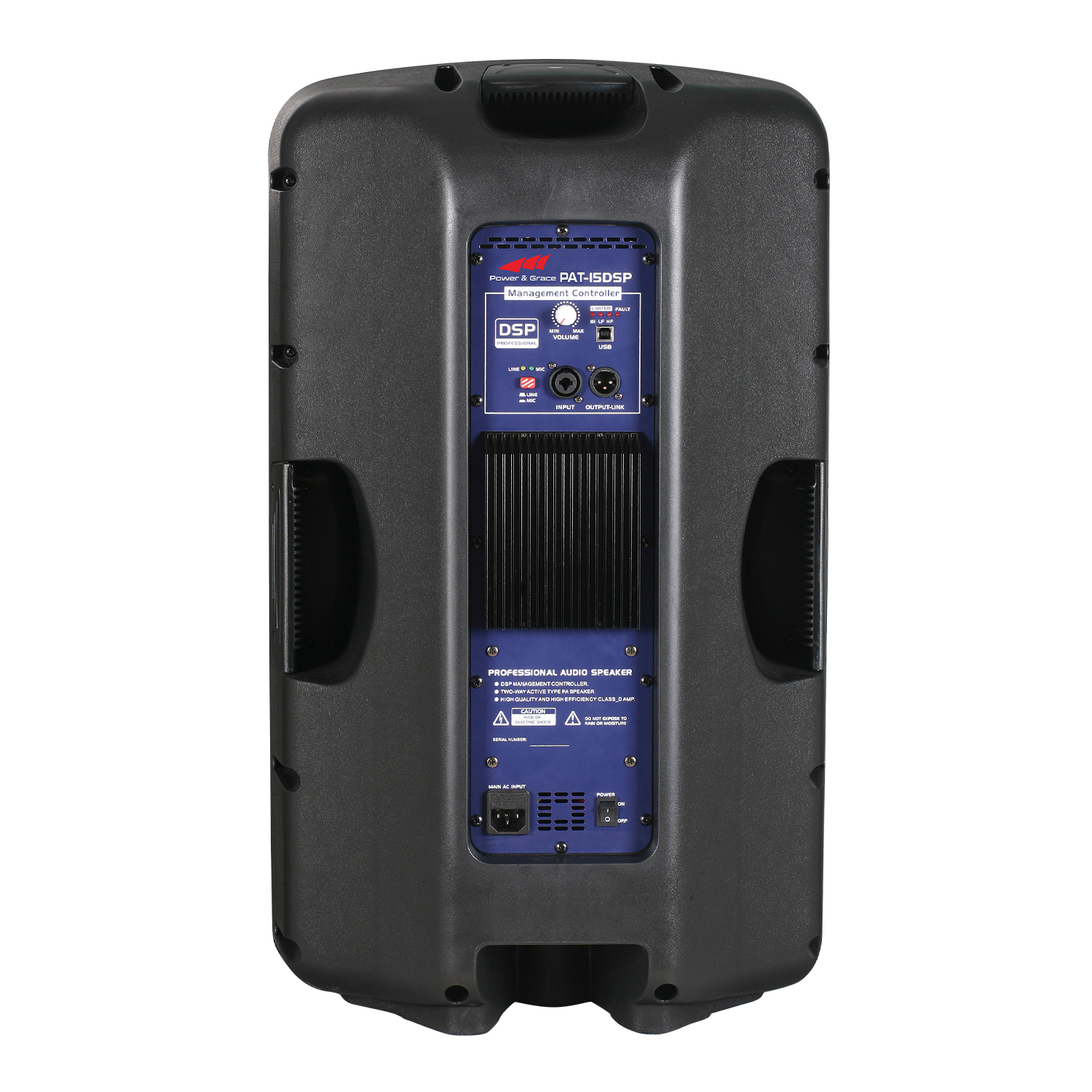

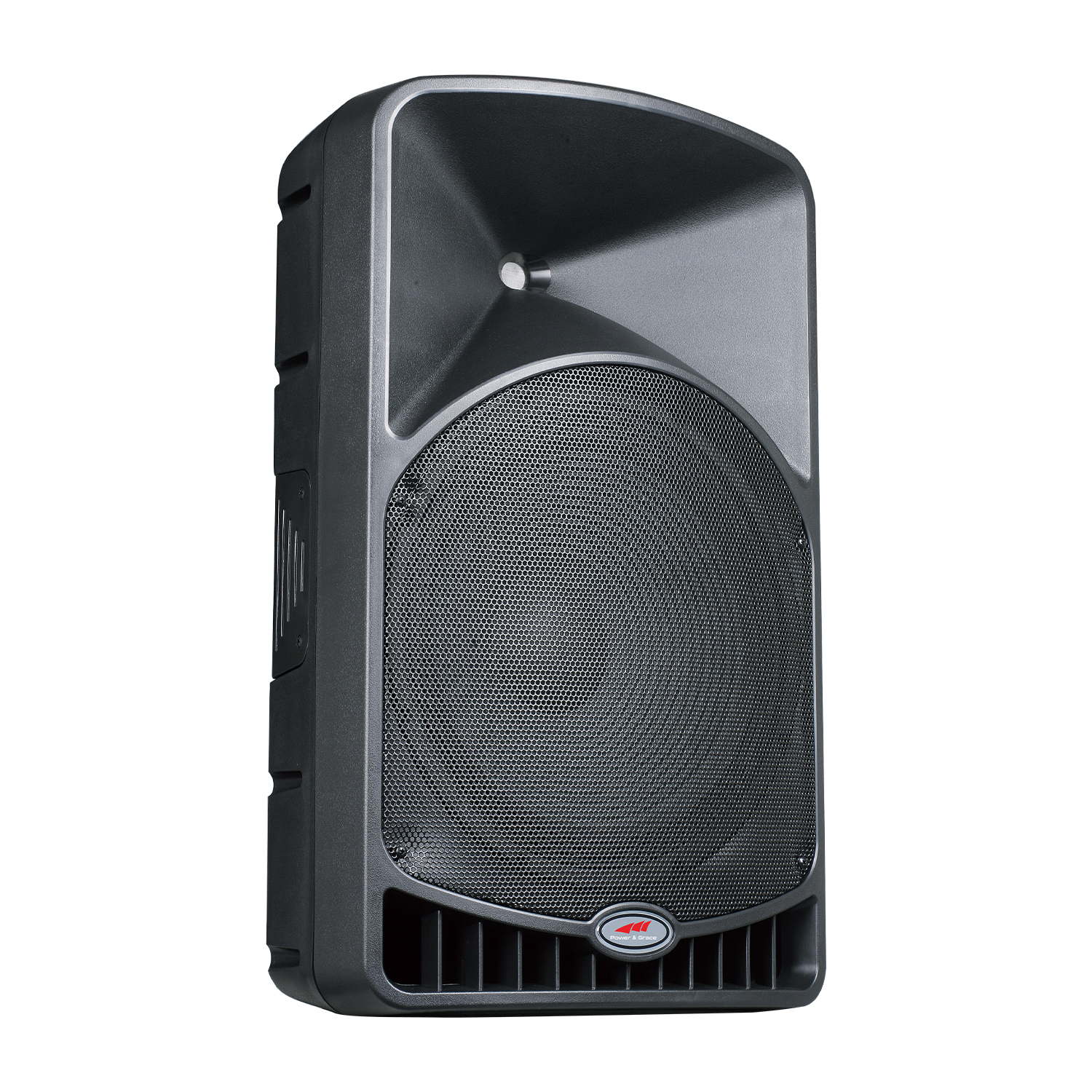

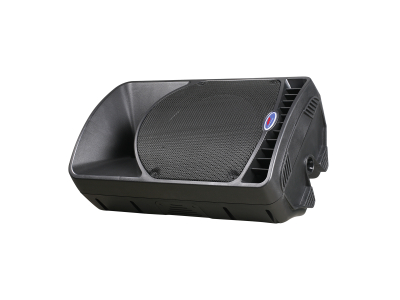

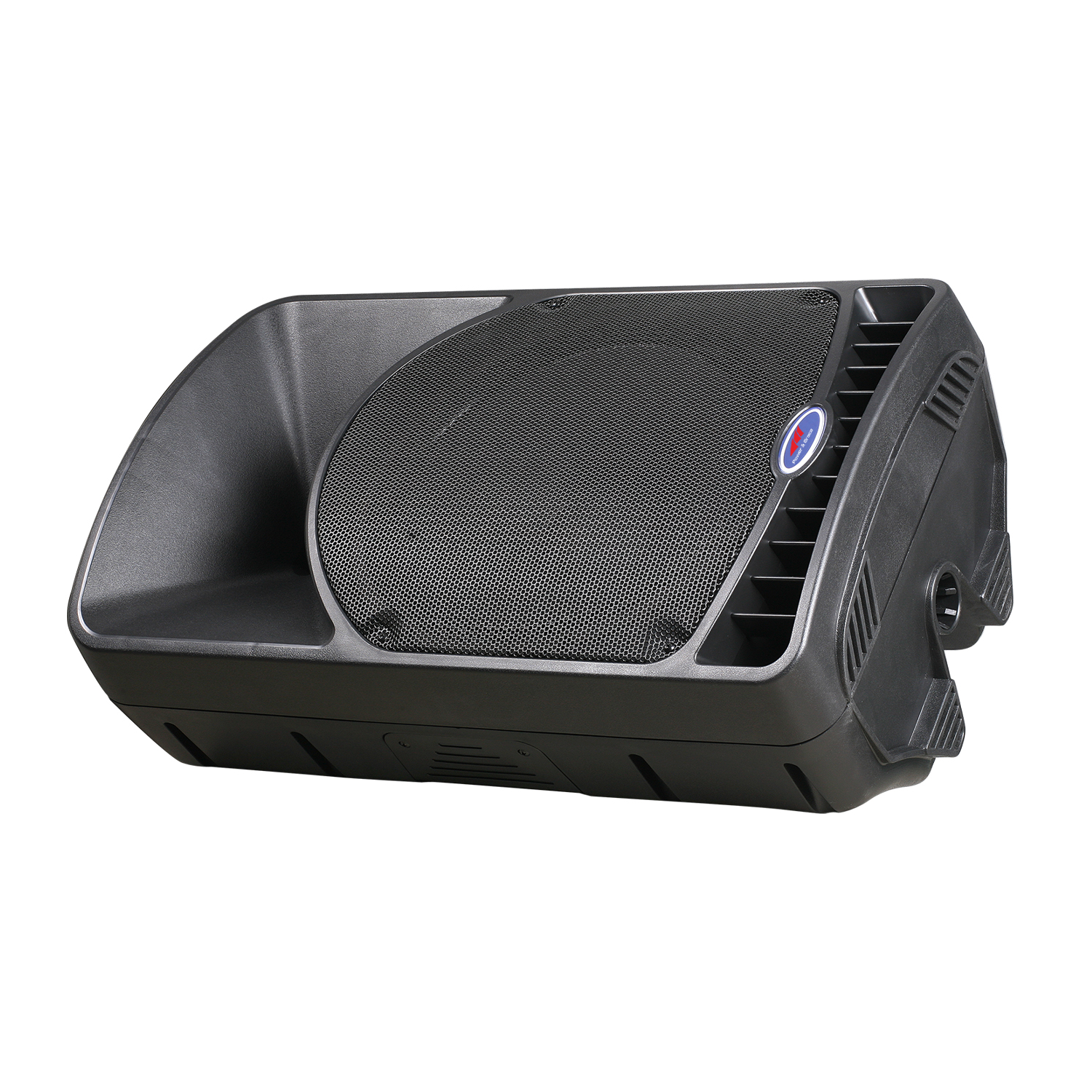

Active Portable PA Speaker With DSP
DSP digital signal processor
2-way active, light-weight and highly efficient professional sound reinforcement speaker system.
The Class D power amplifiers with its total power up to 600W provide tremendous sound pressure and incredible low-frequency impact.
Multiple audio spectrum processing technology brings a melodioussound quality and a live-like musical feeling.
The built-in professional audio compression limiter effectivelyprotects the entire speaker system.
Professional mixer with 1-way microphone input low noise and low distortion.
| Model | PAT-12DSP | PAT-15DSP |
| System | Equipped with DSP digital signal processor, line input, digital amplifier, active 2-way speaker | |
| Driver Quantity | 12"×1(Low)1×Φ25mm Driver | 15"×1(Low)1×Φ34mm Driver |
| Frequency Response(±3dB) | 60Hz-18KHz | 55Hz-18KHz |
| Frequency Response(±10dB) | 54Hz-20KHz | 45Hz-20KHz |
| Max Sound Level(dB/1M) 1 | 110dB | 120dB |
| Max Output Power | 400W(Bass)/150W(Tred) | 500W(Bass)/200W(Tred) |
| Distortion | Line-0.02%, Microphone-0.04% | Line-0.02%, Microphone-0.04% |
| Load Impedance | Treb-8 Ohm, Bass-8 Ohm | Treb-8 Ohm, Bass-8 Ohm |
| Input Impedance | Line-14KOhm, Microphone-14K Ohm | Line-14K Ohm, Microphone-14K Ohm |
| Connectors | XLR;1/4"TRS | XLR;1/4"TRS |
| Dimensions (H×L×D) | 578×345×277mm | 713×431×320mm |
| Net Weight | 15.6kg | 20.7kg |
